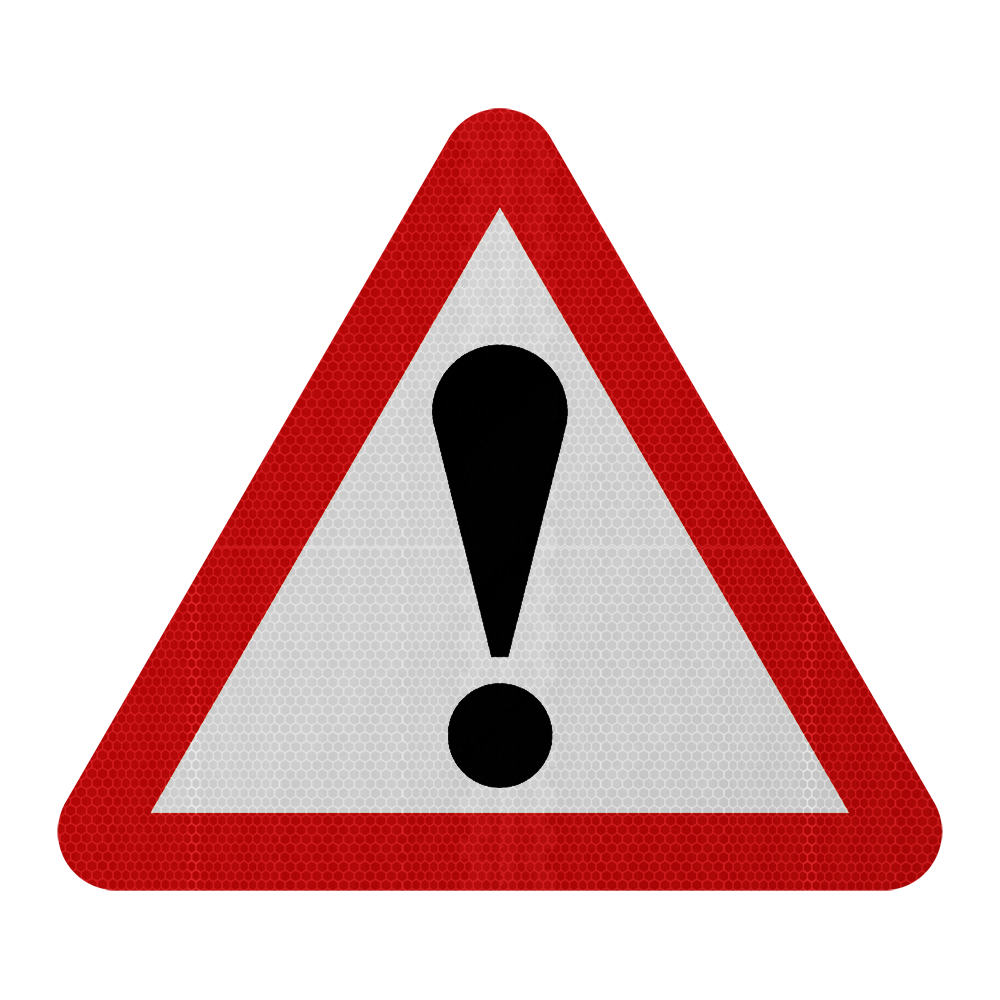

Danger Ahead Traffic Sign | Diagram 562 | RA2 | Post Mountable

Danger Ahead Permanent UK Road Sign

- Post Mountable with 2 fixing rails

- Class 2 R2/RA2 Reflective

- Available in 450mm, 600mm, 750mm, 900mm Tri

Diagram 562 is a general warning sign for a hazard approaching. This sign must be used with a supplementary plate to illustrate the exact danger to the road user. The sign is usually used when temporary hazards are present but can also be used when there is a permanent, non-visible hazard in the road ahead.

Suitable supplementary plates include:

- Accident

- Ambulance Station

- Blasting

- Blind summit

- Census

- Dust cloud

- Fallen tree

- Fire station

- Frost damage

- Hidden dip

- Overhead cable repairs

- Pedestrians crossing

- Rising bollards

- Road liable to flooding

- Runners in road

- Smoke

- Walkers in road

Material: R2/RA2 reflective overlay on aluminium composite backing

Fixing Method: 2 fixing rails for post mounting

Reflectivity: Class 2 R2/RA2

As per the UK Highways Traffic Sign Manual Chapter 4 - Warning Signs page: 70 The following advice is given:

16.1.1.  Although prescribed mainly for temporary use to warn of transient or occasional hazards such as “Dust cloud” or “Census”, diagram 562 (S2?2?56 & S13?2?7, see Figure 16-1) is also used for certain permanent features not easily represented symbolically, e.g. “Hidden dip”. 16.1.2.  The sign conveys no specific message on its own; it must always be accompanied by one of its supplementary plates (S2?2?56 & S13?2?7, see Figure 16-2) or diagram 563.1 (S14?2?7, see Figure 16-3). Plate legends for permanent signs are given in S2?2?56 and those for temporary situations in S13?2?7. Reference should be made to the working drawings to determine the correct layout of the different legends. 16.1.3.  When the legend on the plate indicates a temporary hazard, “Accident”, “Census”, “Dust cloud”, “Fallen tree”, ”Frost damage”, “Overhead cable repairs”, ”Runners in road”, “Smoke” or ”Walkers in road”, the sign may be retained only for so long as the hazard indicated continues to exist or is expected to recur in the near future.
