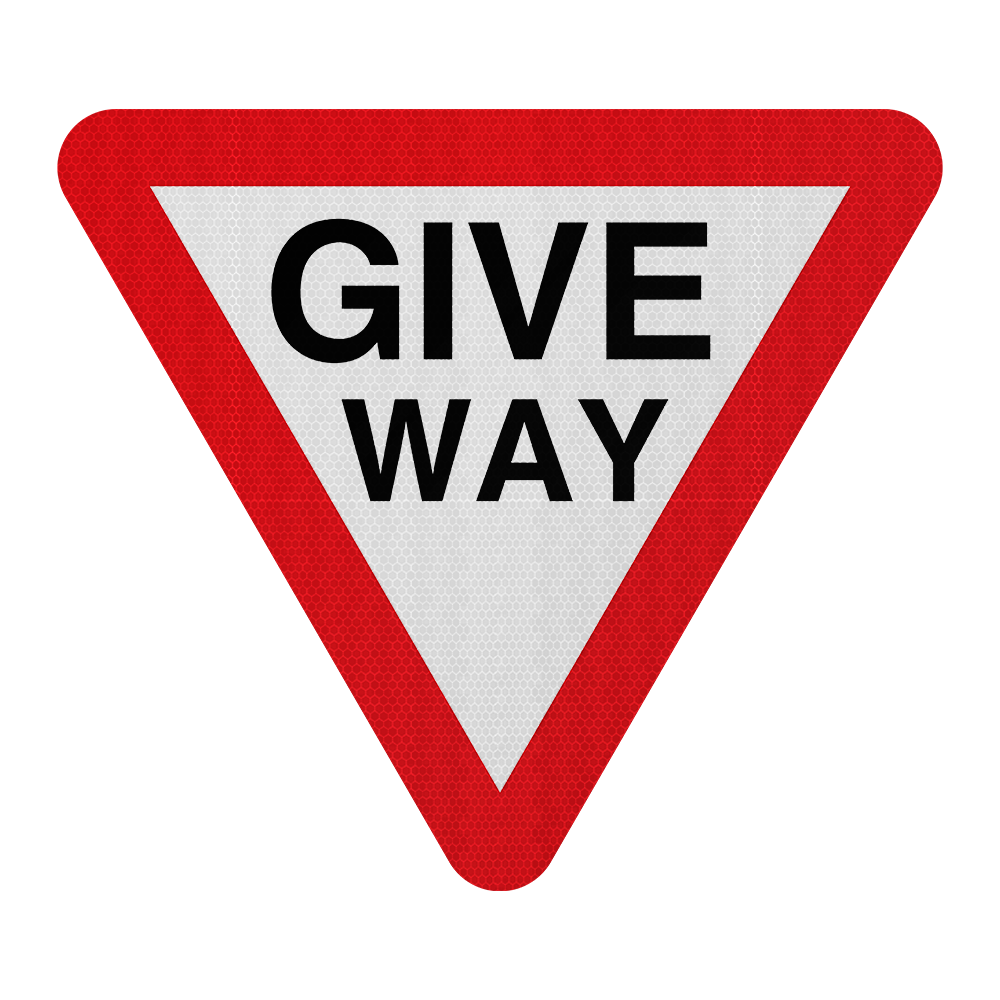

Give Way Road Sign | Diagram 602 | RA2 | Post Mountable

Give Way Triangle Permanent UK Road Sign

- Post Mountable with 2 fixing rails

- Class 2 R2/RA2 Reflective

- Available in 300mm, 600mm, 750mm, 900mm Disc

Diagram 602 is a one of the most common road signs in the UK, Used to help control the flow of traffic give way signs are used all across the UK highways as well as car parks, airports and event spaces.

Specification:

Material: R2/RA2 reflective overlay on aluminium composite backing

Fixing Method: 2 fixing rails for post mounting

Reflectivity: Class 2 R2/RA2

As per the UK Highways Traffic Sign Manual Chapter 3 - Regulatory Signs page: 23 The following advice is given:

3.1.1.  GIVE WAY signs and road markings indicate to drivers that they must give way to other traffic at a road junction. The indication to give way may be given as follows: a) Give Way road marking to diagram 1003A alone (S9?6?3, see Figure 3?1); b) As a) above with an approach triangle marking to diagram 1023A (S9?6?4, see Figure 3?2); or c) As b) above with the upright GIVE WAY sign to diagram 602 (S9?2?2, see Figure 3?3). 3.1.2.  When the requirement to give way is indicated by the sign to diagram 602, advance warning may be given using the sign to diagram 501 (S2?6?1, see Chapter 4). This may be accompanied by the worded marking “SLOW” to diagram 1024 (S11?4?15, see Chapter 5) on the carriageway. 3.1.3.  The road marking to diagram 1003A and the GIVE WAY sign to diagram 602 impose mandatory requirements on drivers entering a major road or crossing a railway or tramway and are subject to section 36 of the Road Traffic Act 1988. As an order is not required to install the sign, where an offence is committed it is one of failing to obey a traffic sign. Where the requirement to give way is at a railway or tramway crossing, the railway or tramway infrastructure manager and the Office of Rail and Road should be consulted on the signing provision (see also 3.5).
